EV Connectors
CHAdeMO Plug/Connector
-
-
- Model : W55047-70-5R(20-01-080006)
- Country of origin : China
- Packing : 650*650*150mm
- Gross weight : 8kg
- Brand : ELECTWAY
- Payment term : T/T at sight
- Shipping : by express delivery
- Delivery time : In stock
- MOQ : 1 set
CHAdeMO,CHAdeMO plug,CHAdeMO connector,CHAdeMO gun,CHAdeMO port CHAdeMO JEVS G105,CHAdeMO cable,CHAdeMO 2.0,CHAdeMO 0.9,CHAdeMO 1.0,CHAdeMO 1.1,CHAdeMO 1.2,CHAdeMO Charging Connector
Detailed
Overview:
Comply with IEC 62196-3 and JEVSG 105, Our company is member of the CHAdeMO Association. We are original maker, for original design and develop this item with patent protection. IP54（mate）, IP44(un-mate), excellent outlooking with better water-proof button design. With LED lamp indicating the charging status. Cable length can be customized from 2~10 meter. With UL94 V0 fire rating.
Description:
1.CE certificated (with TUV mark).

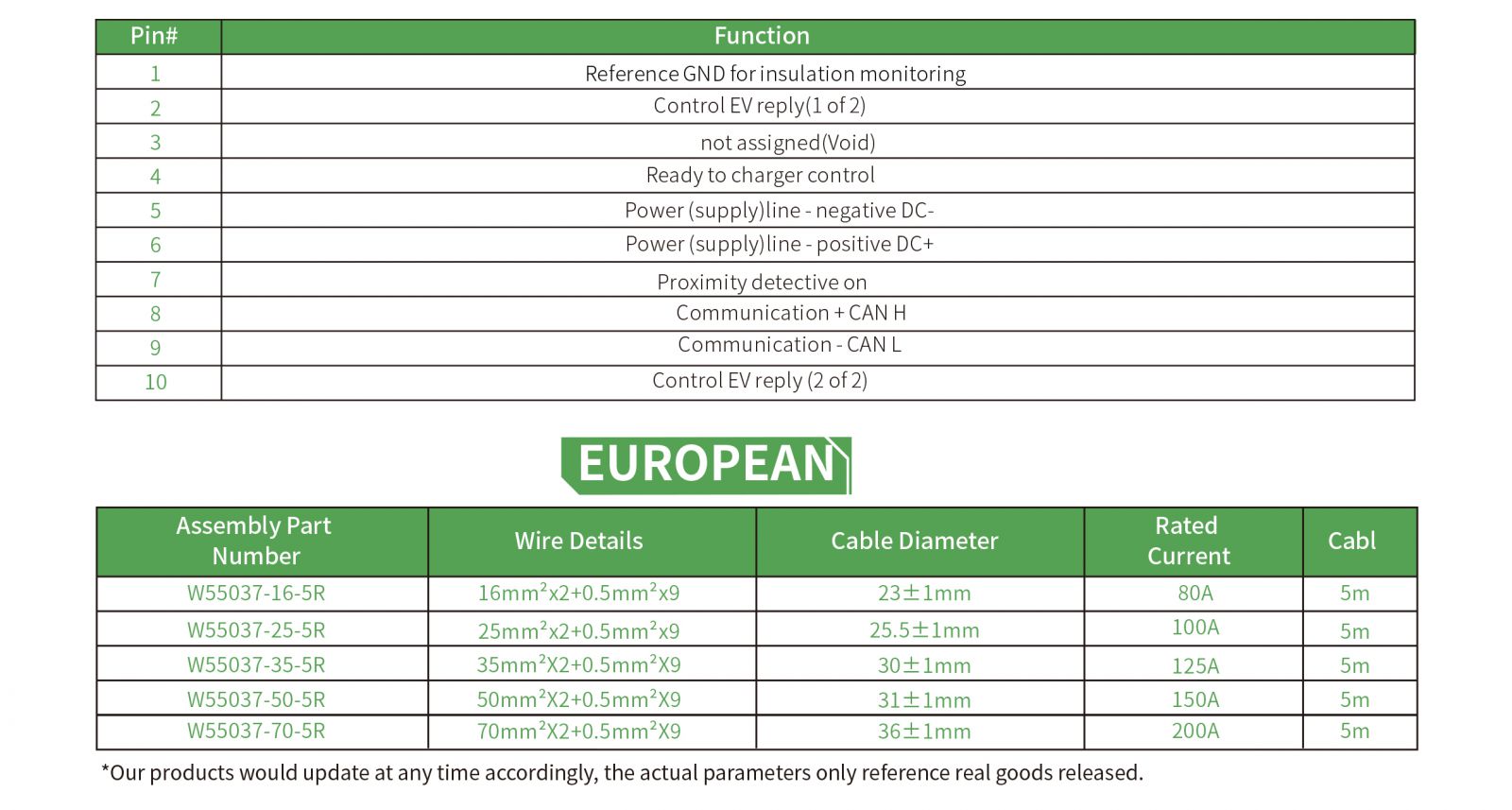

2.Ampere: 200A (70mm²-Dia36mm±1), 150A(50mm²-Dia31mm±1), 125A(35mm²-Dia30mm±1), 100A(25mm²-Dia26mm±1), 80A(16mm²-Dia23mm±1).
3.TUP or TPE cable material optional.
4.PT1000 thermal sensor for DC+ and DC-.
5.12V or ±12V solenoid lock, solenoid location status detect signal output.
6.Manual emergency unlock slip key.
7.Nominal 600V (Certificated), 1000V Max extend.
8.Plug in detect: if not plug in, solenoid will not lock.
9.Rated Mating Cycles: >10000 trips (no load)
10.Maximum Rated Voltage: 600Vdc
